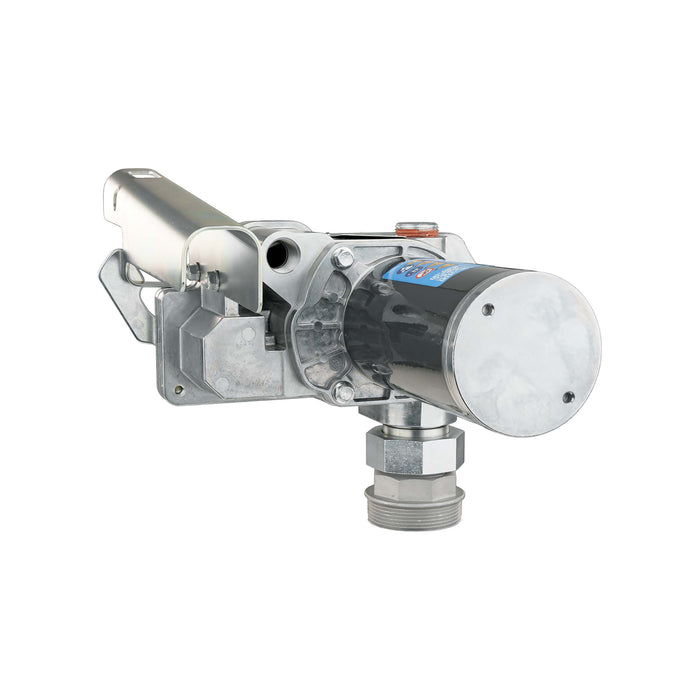

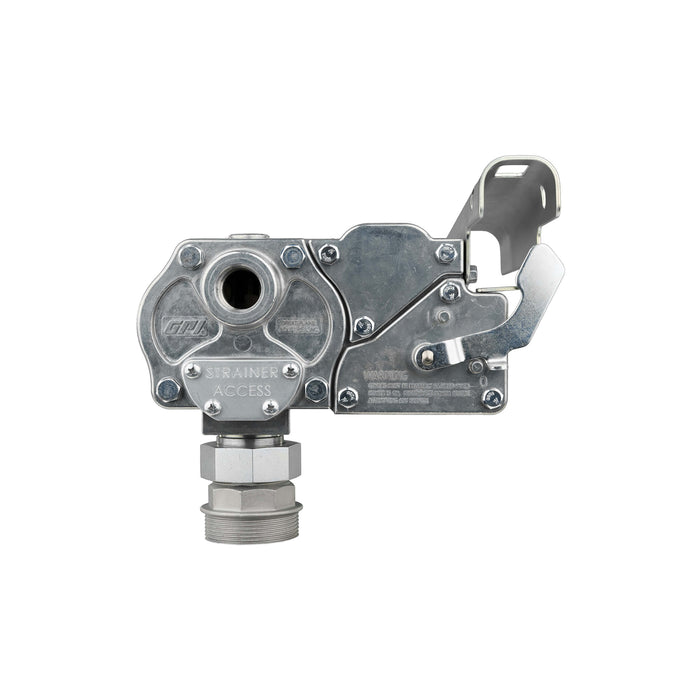

12V and 115V Methanol Transfer Pumps
GPI® METHANOL Series
SKU 110700-04
| MODEL M-1115S-Methanol-PO

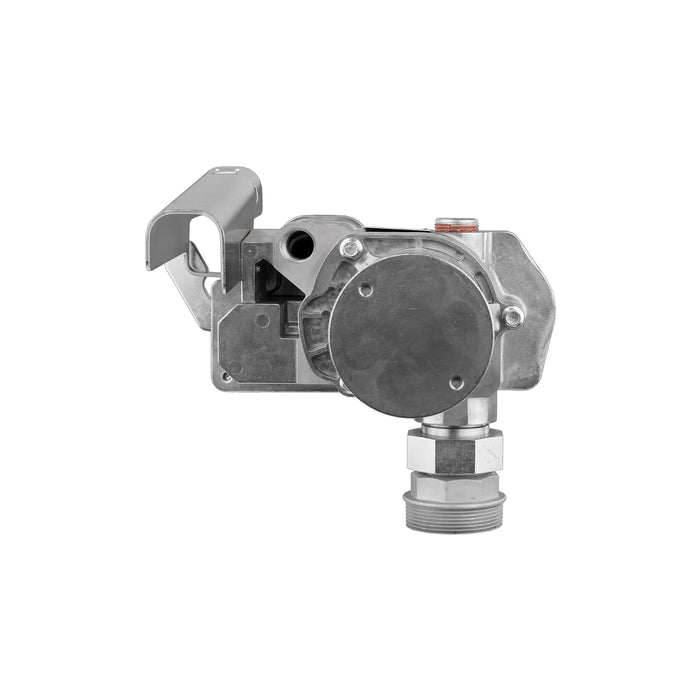

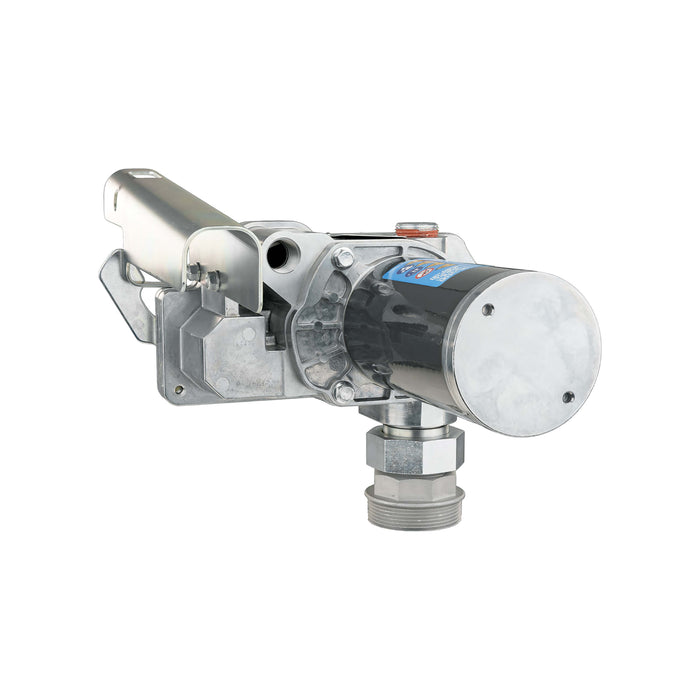

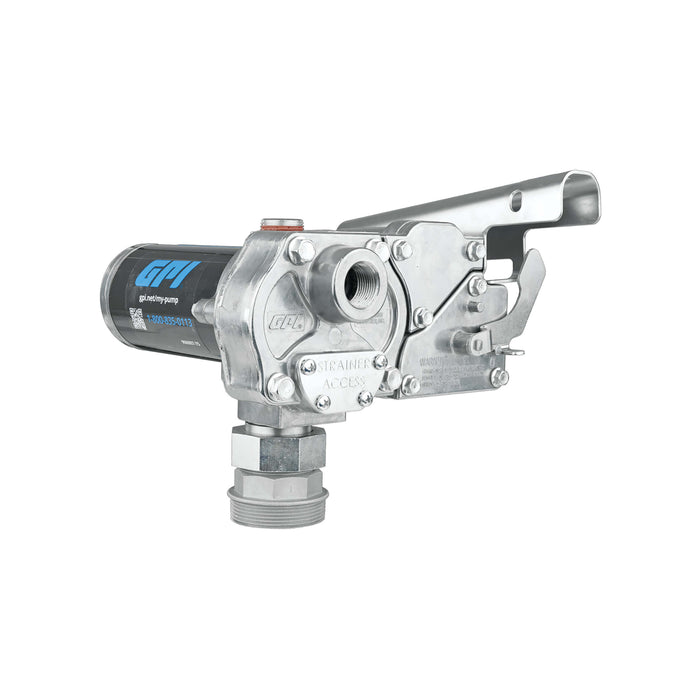

| MODEL M-150S-Methanol-PO

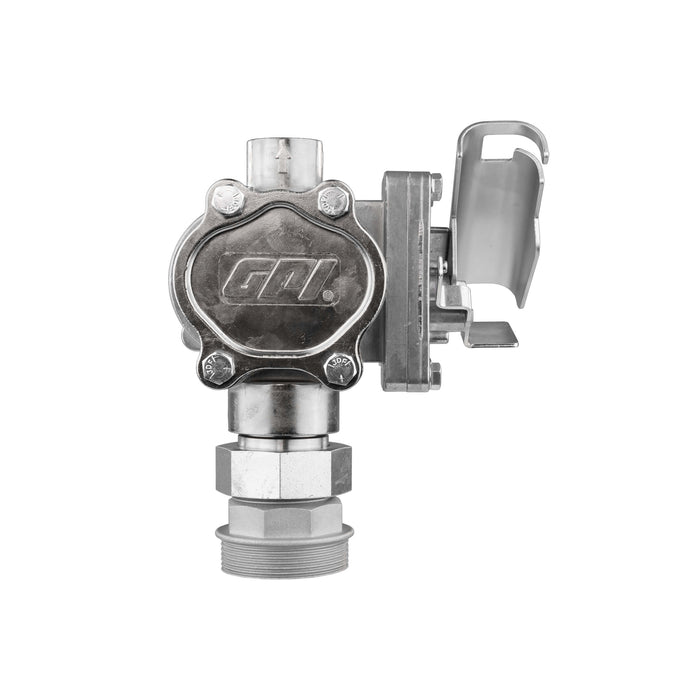

| MODEL EZ-8-Methanol-PO
Original price
$399.99
-
Original price
$649.99
Original price
$649.99
$399.99
-
$649.99
Current price
$649.99
Recommended for use with these fuels:
Methanol Methanol MethanolThe GPI Methanol Fuel transfer pump series are the pumps of choice for refueling methanol. 12V DC and 115V AC motors are available, delivering flow rates ranging from 8 to 15 GPM (30-57 L/min). Mount these dependable pumps to fuel drums or tanks up to 100 gallons, and you are ready to go off-roading, cruise the lake, or achieve "yard of the week" mowing status.

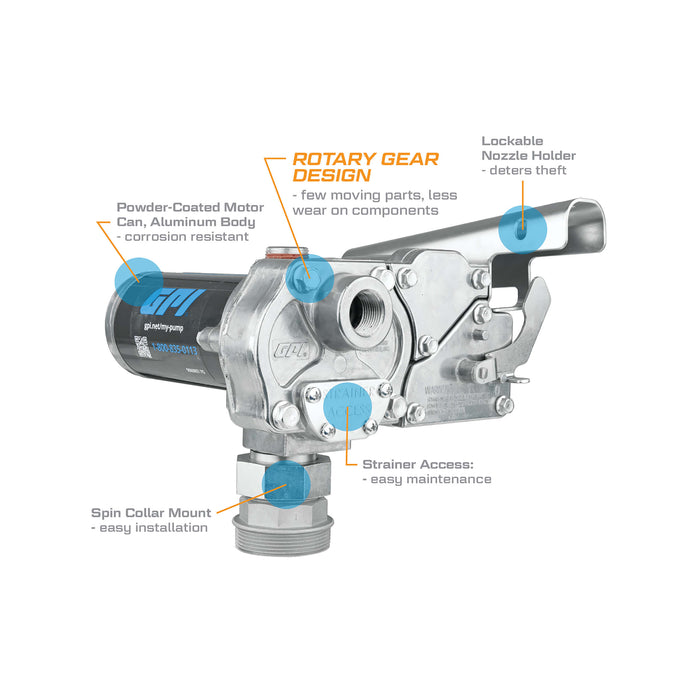

Features & Benefits
- Designed for stationary locations in fleet, agriculture or industrial applications
- Circuit breaker motor protection extends motor life

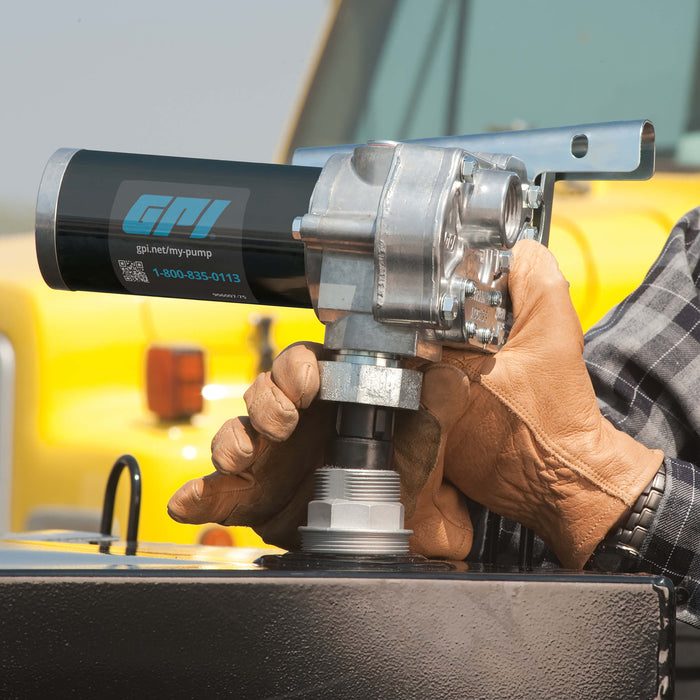

- Convenient spin collar for easy installation and versatile pump mounting
- Powder-coated, Nickel plated lightweight aluminum body provides corrosion resistance and reduces tank stress
- Lockable nozzle holder protects your investment and deters theft.
- UL Listed and CSA Certified
- Independent lab tested, the GPI M-150S received a Gold Medal Performance award for delivering three times more operating hours than our leading competitor's comparable pump
- Light-weight aluminum body provides corrosion resistance and reduces tank stress
- UL Listed Motor and CSA Certified
- Extremely long life and trouble-free operation
- Overload protected motor protection extends motor life
- Features a nickel-plated housing for Methanol usage.
- Self-priming low maintenance design.
- Convenient spin collar for easy installation and versatile pump mounting.
- Powder-coated, lightweight aluminum body provides corrosion resistance and reduces tank stress
- Designed for permanent mounting on vented storage tanks.
- Thermal overload protection extends pump life.
- Motor U.L. listed to U.S. and Canadian standards
Specifications
- Input:
- 115V (AC)
- Fuse:
- N/A
- Type:
- Rotary Gear
- Motor RPMs:
- 1400
- Motor HP:
- 1/8
- Flow Rate:
- 12 GPM (45 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 15 PSI (1.03 bar)
- Max Working Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Inlet:
- 1 in. FNPT
- Outlet:
- 3/4 in. FNPT
- Mounting Type:
- Spin Collar, 2in. MNPT
- Suction Pipe:
- N/A
- Power Cord:
- N/A
- Dispensing Hose:
- N/A
- Nozzle:
- Not included
- Housing:
- Powder Coated, Nickel Plated Diecast Aluminum
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401001747
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada
- Input:
- 12V (DC)
- Fuse:
- 25 amps
- Type:
- Rotary Gear
- Motor RPMs:
- 1900
- Motor HP:
- 1/5
- Flow Rate:
- 15 GPM (57 L/min)
- Duty Cycle:
- 30 min on/30 min off
- Working Pressure:
- 15 PSI (1.03 bar)
- Max Working Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Inlet:
- 1 in. FNPT
- Outlet:
- 3/4 in. FNPT
- Mounting Type:
- Spin Collar, 2in. MNPT
- Suction Pipe:
- N/A
- Power Cord:
- 18 ft. (5.5m), 12/2 AWG Power cord
- Dispensing Hose:
- Not included
- Nozzle:
- Not included
- Housing:
- Powder Coated, Corrosion-Resistant Diecast Aluminum
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401001723
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada
- Approvals (cont'd):
- CE. Complies with the requirements of the EMC Directive 89/336/EEC
- Input:
- 12V (DC)
- Fuse:
- 20 amps
- Type:
- Rotary Gear
- Motor RPMs:
- 2100
- Motor HP:
- 1/10
- Flow Rate:
- 8 GPM (30 L/min)
- Duty Cycle:
- 15 min on / 30 min off
- Working Pressure:
- 15 PSI (1.03 bar)
- Max Working Temperature:
- -20° F to 125° F (-29° C to 52° C)
- Inlet:
- 1 in. FNPT
- Outlet:
- 3/4 in. FNPT
- Mounting Type:
- Spin Collar, 2in. MNPT
- Suction Pipe:
- Not included
- Power Cord:
- 15 ft. (4.6m), 14/2 AWG Power cord
- Dispensing Hose:
- Not included
- Nozzle:
- Not included
- Housing:
- Powder Coated, Corrosion-Resistant Diecast Aluminum
- Warranty:
- 2-yr pump warranty
- UPC:
- 031401000740
- Approvals:
- cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada
Also Available At
Manuals / Documents
Applications
What's in the Box

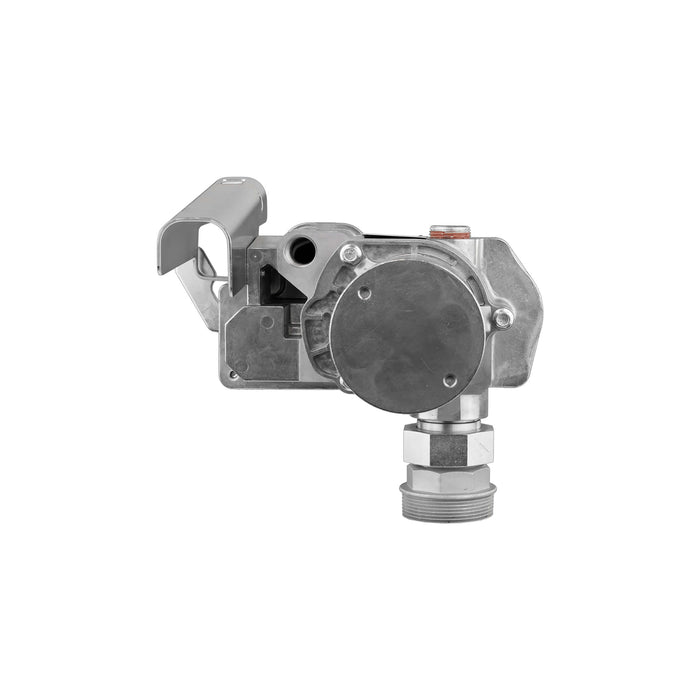

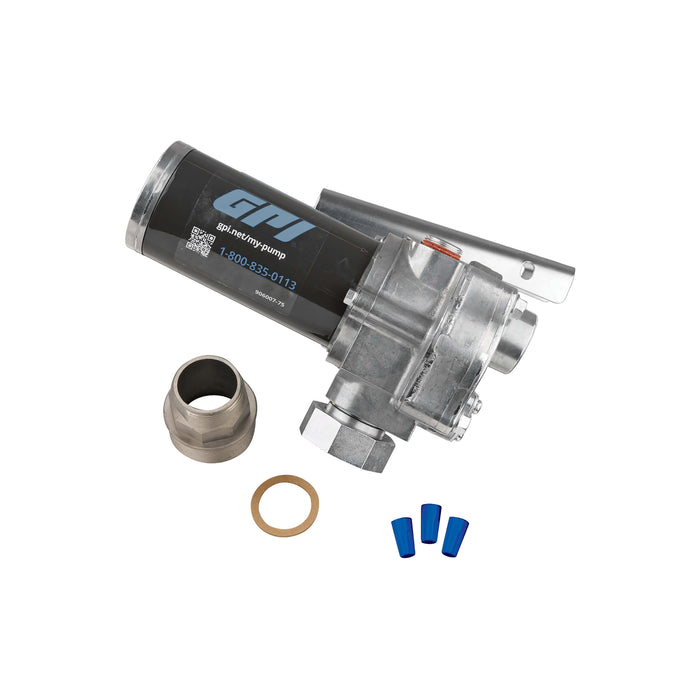

Includes the M-1115S 12 GPM pump with spin collar, lockable nozzle holder, owners manual.

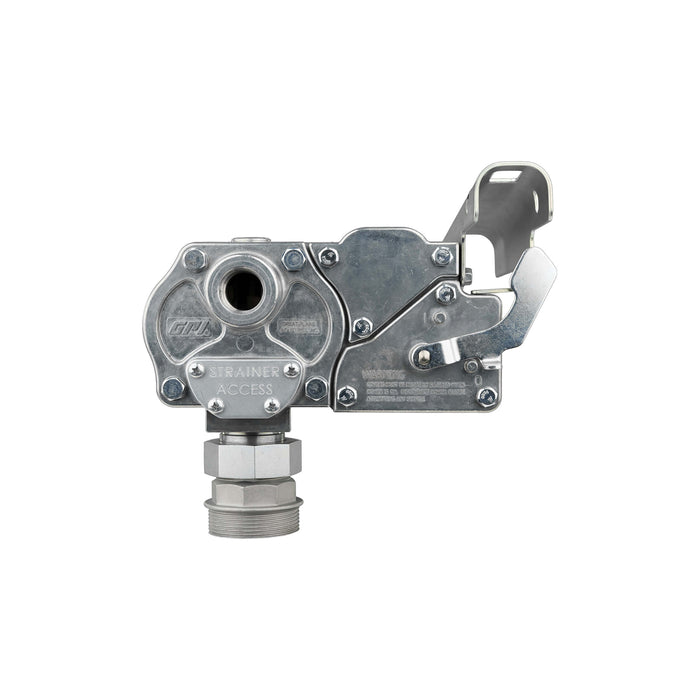

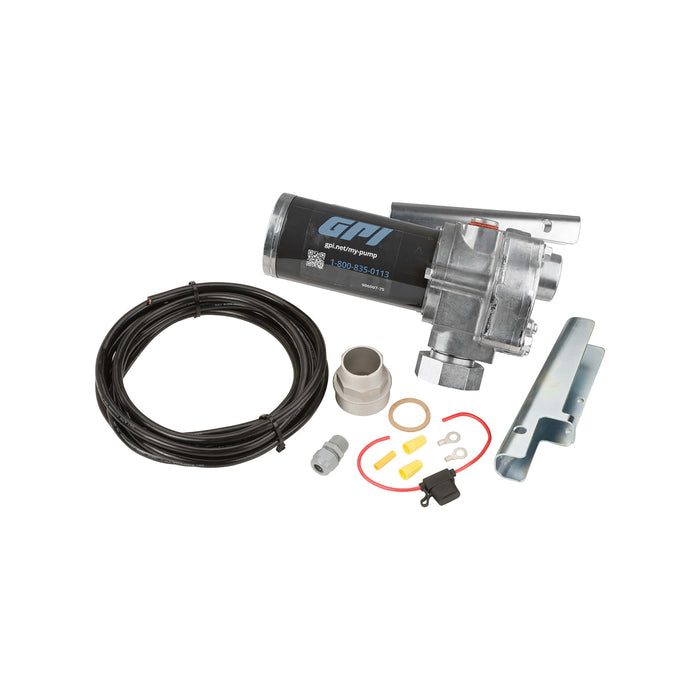

Includes the M-150S 15 GPM pump w/spin collar, power cord, lockable nozzle holder, tank adapter, fuse assembly owners manual.

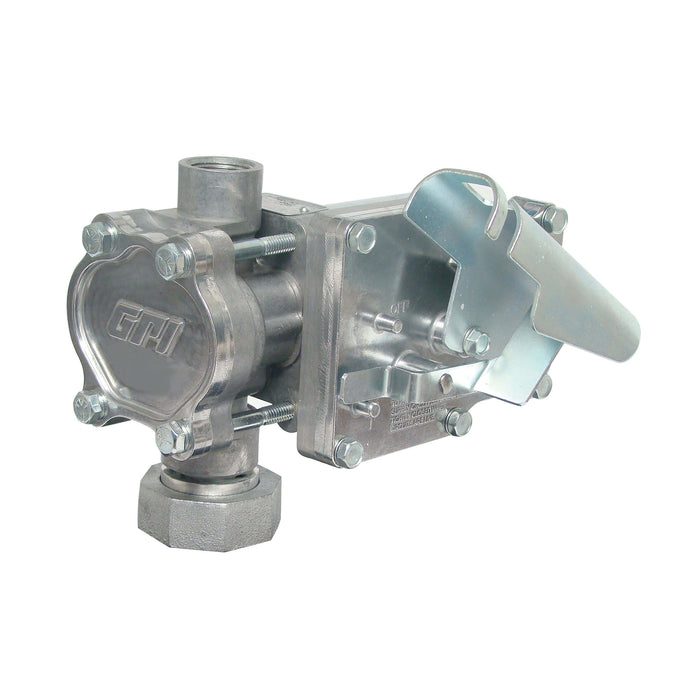

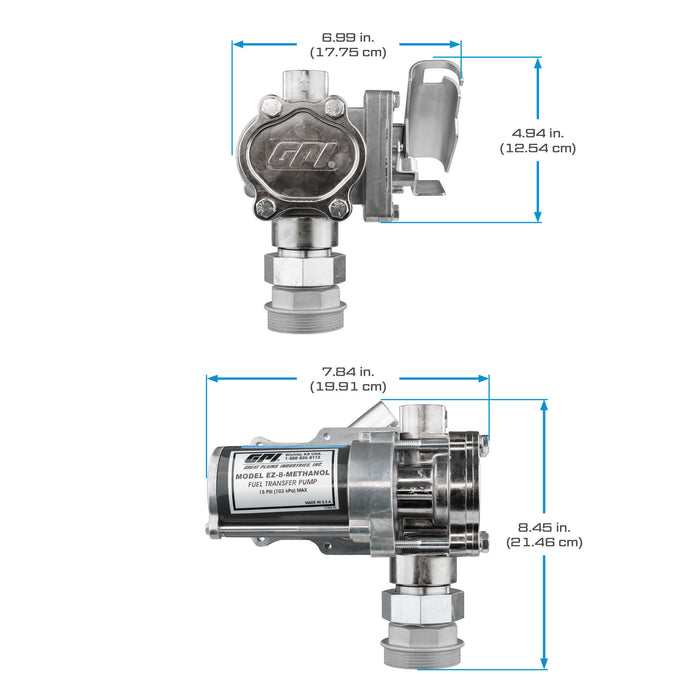

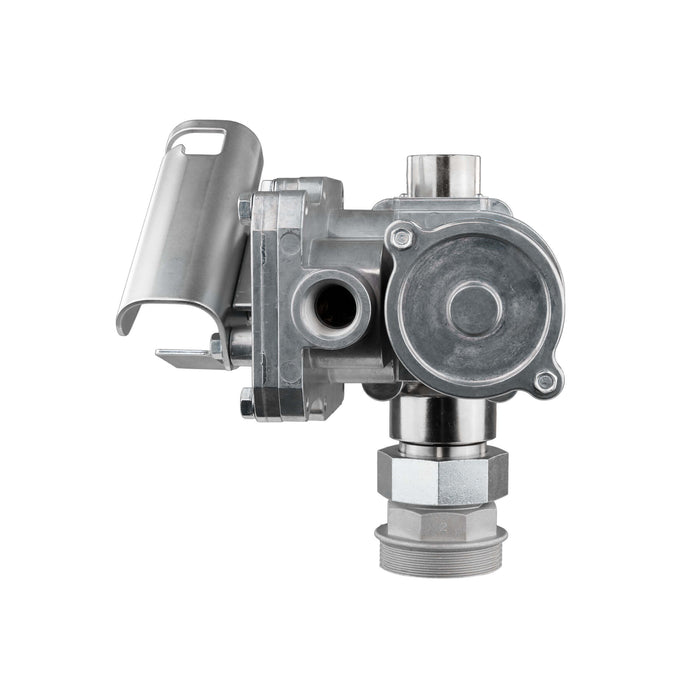

EZ-8 8 GPM pump with spin collar, dispensing hose w/static wire, power cord, street elbow, tank adapter, fuse assembly, owners manual.
